Pipedrive Integration

What the AI can do

Summary

Pipedrive Integration connects Pipedrive CRM with Newo Platform and lets a Newo agent manage appointment-style activities inside Pipedrive.

It currently supports:

• checking availability by reading existing Pipedrive activities
• booking appointments with automatic contact lookup or contact creation
• cancelling booked appointments
• identifying existing callers by phone and loading future bookings into persona memory
• token-based auth and connector-based OAuth auth

The integration is aimed at service businesses and sales teams that want a conversational agent to schedule, confirm, and cancel meetings in Pipedrive.

Common use cases

• When a caller asks for available times -> the agent reads Pipedrive activities and computes free slots
• When a caller confirms a slot -> the agent creates or reuses a Pipedrive person and books an activity
• When a caller wants to cancel -> the agent deletes the matching Pipedrive activity
• When the caller phone number is known -> the agent loads the matching person and future bookings into prompt context
• When the session starts and preload is enabled -> the agent silently preloads nearest available slots

Features at a glance

Feature	Supported	Notes
Availability check	✅	Uses activities_list and computes free slots locally
Booking creation	✅	Uses persons + activities APIs
Booking cancellation	✅	Deletes activity by booking_id
Existing client detection	✅	Phone-based lookup through persons/search
Prompt context preload	✅	Future bookings injected into prompt sections
Session-start slot preload	✅	Controlled by pipedrive_check_availability_on_conversation_start
Token auth	✅	x-api-token header through http connector
OAuth auth	✅	oauth_code + create_extension_connector through api connector
Reschedule flow	❌	Use cancel + rebook
Deal / pipeline management	❌	Not implemented
Multi-location routing	❌	Single Pipedrive workspace/account per integration

Before You Start

Before setup:

• active Pipedrive account
• for Token auth: a Pipedrive API token
• for OAuth auth: a Pipedrive app authorization flow that yields oauth_code
• a correct tenant domain in pipedrive_base_api_url, because runtime requests target the workspace-specific Pipedrive URL even in OAuth mode

Setup

Create the Newo project

If this project already exists in Newo Builder, skip this subsection and continue with the integration-specific settings below.

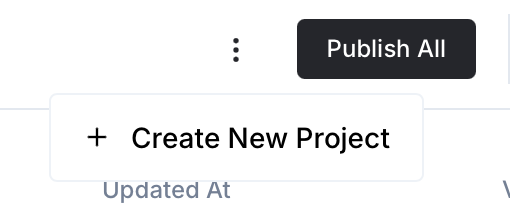

1. In Newo Builder, open the projects list and click Create Project (or Create New Project from the top-right menu).

2. Fill IDN and Title. The exact names do not matter; use any clear names your team will recognize.
3. In Registry, choose the release channel:
   • staging — the newest module fixes appear here first. Use it when you need the latest fix, but expect possible unfinished changes.
   • production — the final stable version for live projects.
4. In Module, select the module for this integration.

5. Leave Module version on Latest version unless support tells you to pin a specific version, then click Create.

3.1 Authentication Modes

The integration has two auth modes:

1. Token

   • operator sets pipedrive_auth_type = Token
   • runtime sends x-api-token
   • this is the simplest direct API path

2. OAuth

   • operator sets pipedrive_auth_type = OAuth
   • operator pastes pipedrive_oauth_code
   • SetupFlow/_setupConnectorSkill creates a Pipedrive extension connector via create_extension_connector
   • the visible authorization link currently uses placeholder app credentials in the repo and should be replaced with the real Pipedrive app credentials when they are known
   • runtime API calls then go through the api connector instead of the raw token header path

3.2 Operator-Facing Attributes

Attribute	Required	Description
pipedrive_auth_type	Yes	OAuth or Token
pipedrive_api_token	Required for Token	Pipedrive API token used in x-api-token header
pipedrive_oauth_code	Required for OAuth	One-time authorization code used to create the OAuth connector
pipedrive_base_api_url	Yes	Required workspace URL such as https://your-company.pipedrive.com
project_business_time_zone	Yes	Shared project timezone used for slot interpretation and UTC conversion before booking
pipedrive_show_for_days	No	Availability window size, default 1
pipedrive_duration	No	Default appointment duration in minutes, default 30
pipedrive_enable_availability	No	Enable / disable availability tool
pipedrive_enable_booking	No	Enable / disable booking tool
pipedrive_enable_cancellation	No	Enable / disable cancellation tool
pipedrive_check_availability_on_conversation_start	No	Silent slot preload at session start
pipedrive_setup_scenarios	No	Publish default canvas/library content

3.3 System-Managed Hidden Attributes

These are not meant for normal operator editing but are part of the integration contract:

Attribute	Purpose
pipedrive_setup_persona_id	Setup persona used for setup-time operations
pipedrive_availability_extraction_schema	LLM extraction schema for availability
pipedrive_availability_extraction_instructions	LLM extraction instructions for availability
pipedrive_booking_extraction_schema	LLM extraction schema for booking
pipedrive_booking_extraction_instructions	LLM extraction instructions for booking
pipedrive_cancellation_extraction_schema	LLM extraction schema for cancellation
pipedrive_cancellation_extraction_instructions	LLM extraction instructions for cancellation

3.4 What SetupFlow Does

On publish, SetupFlow:

• registers both api and http connectors named pipedrive_connector
• creates/maintains the hidden setup persona
• publishes operator-facing and hidden attributes
• registers custom Newo tools through _setupToolsSkill
• when pipedrive_auth_type = OAuth, runs _setupConnectorSkill to create the OAuth extension connector

How to use the integration

4.3 Important Runtime Rules

• The integration uses custom tools, not generic NAF booking tools.
• search_booking_tool is still expected to stay available in ConvoAgent for booking lookup.
• Availability and booking extractions are LLM-assisted through hidden JSON schemas and extraction prompts.
• Booking now converts the caller-confirmed local time into UTC before sending due_date and due_time to Pipedrive.
• Activity creation in v2 uses participants with a primary participant instead of writable person_id.

How to test that everything works

Recommended checks:

1. Publish the project and verify SetupFlow runs without runtime errors.
2. Confirm custom tools are present in project_attributes_settings_platform_tools.
3. In Token mode, run availability + booking + cancellation smoke tests.
4. In OAuth mode, verify pipedrive_oauth_code leads to connector creation and business requests go through pipedrive_connector.
5. Verify a booking creates:
   • person lookup/create in v2
   • activity create in v2
   • participants payload instead of person_id
   • UTC due_date / due_time while user-facing confirmation remains local

Recent live evidence in this repo:

• slot truncation fix validated by a prod e2e run
• booking create validated on prod after the participants fix
• post-fix live booking payload used participants and due_time=12:00 UTC for a 3 PM Europe/Istanbul user-facing slot

FAQ

Q: Does the integration use generic NAF booking tools?
A: No. It registers custom tools pipedrive_check_availability, pipedrive_book_appointment, and pipedrive_cancel_appointment, while overriding the generic booking tools to stay disabled.

Q: Are appointments stored as Pipedrive deals?
A: No. They are stored as Pipedrive activities.

Q: How is the contact linked to a booked activity?
A: In v2, the booking payload uses participants with a primary participant instead of writable person_id.

Q: What time format is sent to Pipedrive on booking?
A: The user-facing slot is handled in local business time, then converted to UTC before due_date / due_time are sent in the activity create payload.

Q: What happens if the caller already exists in Pipedrive?
A: The integration stores pipedrive_person_id, reuses that contact for booking, and loads future bookings into persona memory for the conversation.

Q: Can I use OAuth without a raw API token?
A: Yes. The integration now supports connector-based OAuth through oauth_code + create_extension_connector. Token mode remains available separately.
